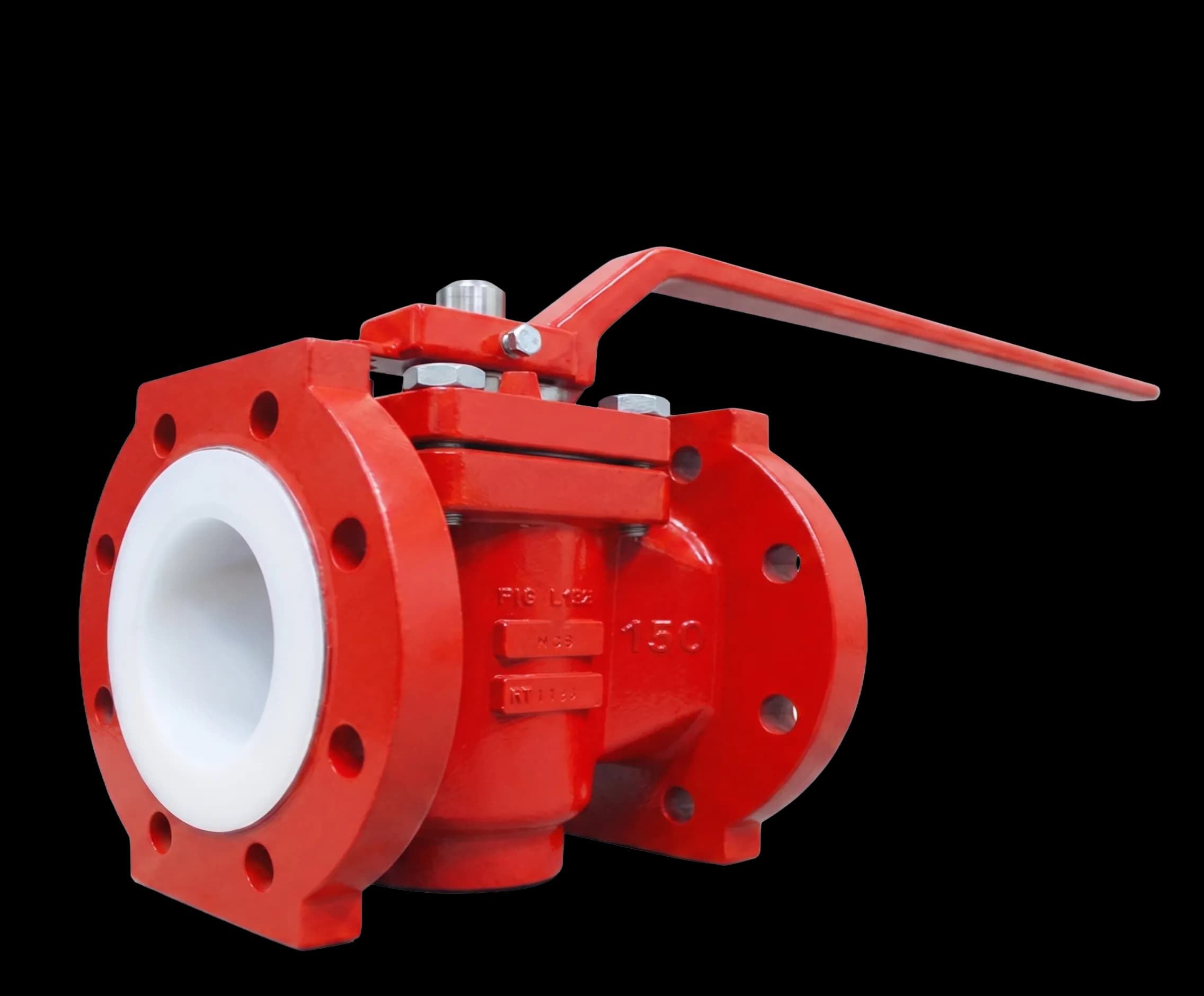

PFA Lined Plug Valve
Sleeve-type PFA lined plug valve featuring a large, robust circumferential sealing area for severe throttling and isolation.
Technical Specifications
| Specification Parameter | Engineering Details |
|---|---|
| Pressure Rating | PN 10 |
| Body | DI/CS + PFA/FEP Lined |
| Plug | SS+PFA Lined |
| Diaphragm | PTFE |
| End Connection | Flanged As Per ANSI B16.5 |
| Operation | Self Operation |
| Design Standard | BS 5351/ISO 17292 |
| Testing Standard | API 598 |
| Face to Face | As Per ANSI B16.10 |
